Function and style come together in the SRM Racks from Go Rhino. SRM400 Modular Roof Rack Fabricated Steel Basket

---

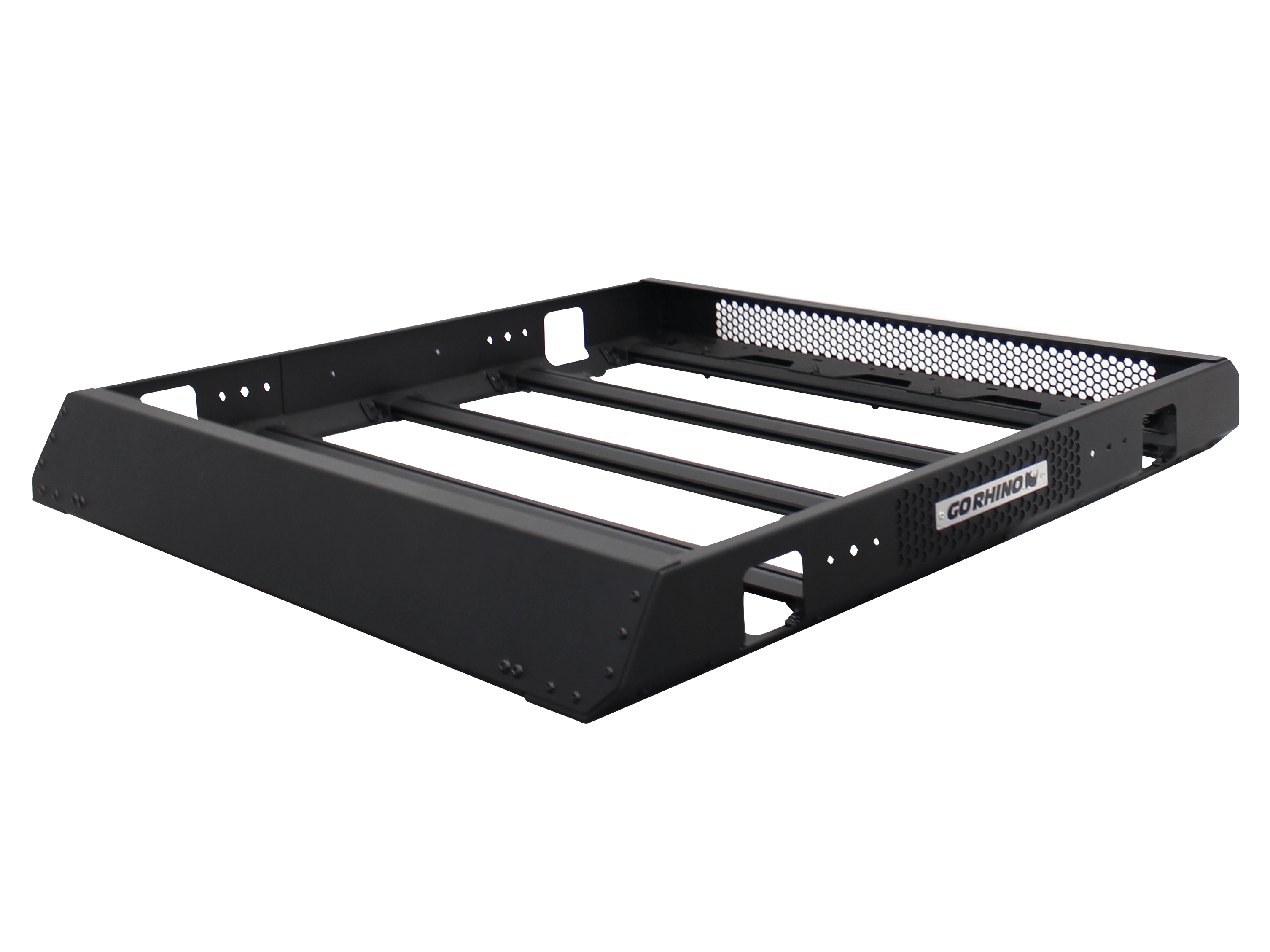

The Go Rhino SRM400 Roof Rack is a basket-style roof rack with removable front and rear fairings, which allow it to be customized to fit oversized items, such as lumber, kayaks or surfboards. It is equipped with Go Rhino’s exclusive 4-CORE aluminum bars, the extruded track system that works with any 1/4×20 hex bolt and provides unlimited mounting options for gear and trail tools. Integrated side light mounts and hole patterns offer a variety of supplemental lighting options. The SRM400 is 52 inches wide, 68 inches front-to-back, and can be mounted on any vehicle’s OE crossbars with the included Rhino Clamp system. Other mounting options are also available. SRM 400 come with a Limited Lifetime warranty on materials and construction and a 5 year warranty on the Textured Black Finish.

• Aluminum cross bars include a four-core extruded track system that works with any 1/4-20 hex bolt
• Integrated hole pattern for standard scene light mounts – two sets per side
• Integrated side light mounts for standard cube stem mount LED lights
• Modular construction allows the rack to ship via parcel (UPS/FedEx)
• Removeable front fairing and rear cover allow for storage of larger items such as paddle boards and kayaks, etc.
• SRM400 Rack is 68 long x 52 wide x 5 1/2 tall
• Solid front fairing reduces wind noise while vented rear cover allows for air to escape reducing noise from turbulence
• Textured black powder coat
• Universal U bolt style mounting clamp system included
• Extruded aluminum cross bars
• Front fairing and rear cover are removeable exposing multiple mounting hole patterns for a variety of lighting styles
• Galvanized steel fabricated panels
• Injection molded Nylon cross bar end caps attach the cross bars securely to the fabricated side panels

Attributes
California Proposition 65	WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Category	Rack and Cargo Accessories, Roof Racks
Comments	Fits most OE crossbars, 4-CORE Compatible
Construction	Aluminum
Country of Origin (Primary)	MX
Design	Modular
Emission Code	Legal US
Features	Light ready, 4-Core compatible
Finish	Textured Black
GTIN	00887753622013
Google Category Code	916, 916
Harmonized Tariff Code (Schedule B)	8708299999
Hazardous Material Code	N
Includes	Rack, Rhino Clamps, Rack, Rhino Clamps
Installation Notes	No drilling required
Installation Type	No drilling required, No drilling required
Installed Height	5"
Length	68"
Life Cycle Status Code	Available to Order
Material	Mild Steel, Mild Steel
NAFTA Preference Criterion Code	B
Number Of Boxes	1
Oversized	No
Oversized Y/N	No
Price Change	Y, Y
Product Line	SRM 400 Roof Rack
Product Notes	Includes Rhino clamps(U-bolts) to mount rack to many styles of cross bars, Includes Rhino clamps(U-bolts) to mount rack to many styles of cross bars
Product Type	Roof Racks & Bed Racks, Roof Racks & Bed Racks
SDR Required Flag	N
SR Rack Length	68, 68"
Size	68" Long x 52" Wide, 68" Long x 52" Wide
Style	SRM, SRM
Sub-category (Line)	Cargo Rack
Surface Width	52 ", 52"
Type of Product	Roof Racks
UPS Shippable	Yes, Yes
Unit	EA, EA
Warranty	Limited Lifetime
Warranty Time	5
Weight Capacity	300 LBS Dynamic and 600 LBS Static, 300 LBS Dynamic and 600 LBS Static
