Description

Manufacturer Part Number: UIB64

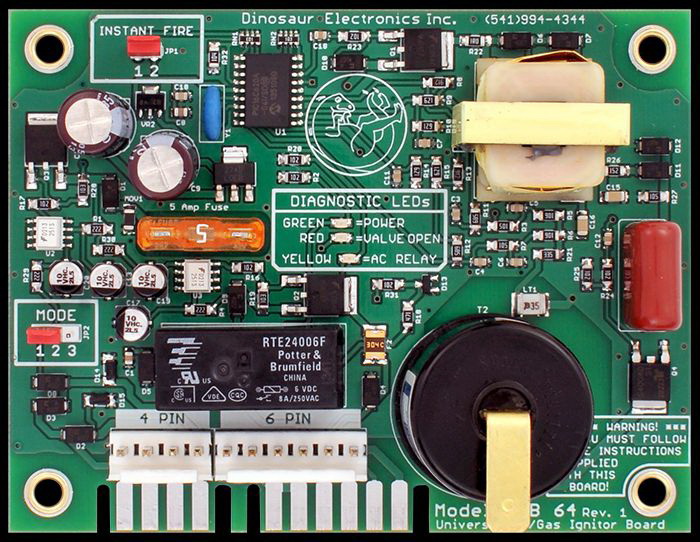

Ignition Control Circuit Board; For Atwood ® Ac/Gas Water Heaters That Have Both 4 Position And 6 Position Edge Style/ 10 Pin Style Connector; Can Also Be Use In Older Furnaces/ Water Heaters And Refrigerators That Use A Standard Igniter Board With A 6 Position Edge Or Pin Style Connector By Configuring Jumpers On The Board; 12 Volt Dc

Attributes

• Compatibility: Atwood ® AC/Gas Water Heaters That Have Both 4 And 6 Position Edge Style/ 10 Pin Style Connector
• Voltage: 12 Volt
• Length (IN): 4-1/4 Inch
• Width (IN): 3-1/4 Inch

Product Description

Universal ignitor board specialized to work in Atwood’s® AC/Gas water heaters with 4 + 6 header pin or edge style connectors, or with the single 10 pin connector used in Atwood’s® latest models. By resetting the jumpers it can function like a UIB S ignitor board so it can be configured to replace standard DSI ignitor boards that use a single 6 position connector found in older water heaters, refrigerators and furnaces.

Features & Benefits

• TEI Certified
• 12 Volt DC Operation
• Jumper Configurable For Universal Applications
• Fuse And Surge Protected
• 3 Diagnostic LEDs
• By Resetting The Jumpers It Can Function Like A UIB S Ignitor Board So It Can Be Configured To Replace Standard DSI Ignitor Boards That Use A Single 6 Position Connector
• Limited 3 Year Warranty
