Description

Manufacturer Part Number: 49501

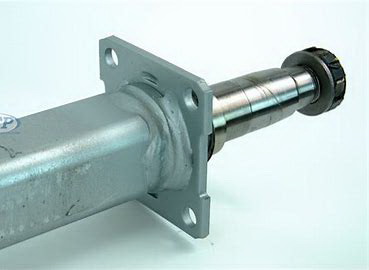

Trailer Axle; Straight Axle Design; 1800 Pound Capacity; 57-1/2 Inch Hub Face To Face Length/ 62 Inch Overall Length; 1-1/2 Inch Galvanized Square Tube; With Two Castellated Nuts/ Washers/ Cotter Pins

Attributes

• Capacity (LB): 1800 Pound
• Axle Type: Beam Only
• Hub Face: 57-1/2 Inch
• Spindle Location: Straight
• Mount Location: 46-1/2 Inch Length Spring Center To Spring Center
• Tube Size: 1-1/2 Inch
• Spring Detail: No Spring
• Includes Castle Nuts: Yes
• Tube Type: Square
• Includes Washers: Yes

Product Description

The galvanized finish will allow the axle beam to last longer than traditional painted, powder coated, or e-coated axles with more resistance against water and snow environments. The axle has a pre-drilled 5/16" drain hole to allow water to purge itself from the inner tubing. The spring center holes are drilled by the manufacturer at 46.5 Inch center to center.

Features & Benefits

• Flange-Less
• Galvanized Axles Will Last Much Longer Than Painted Ones And Are Perfect For Marine Applications
• Features A Stainless Steel Wear Sleeve On Either Spindle
• Slight Camber Present In The Welds Of The Spindles
• Pre-Drilled 5/16 Inch Drain Hole
• Hot Dipped Galvanized Steel Beam To Combat Corrosion
• EZ Lube Spindle Design Features A Zerk Fitting At The Ends Of Both Spindles For Easy Bearing Lubrication
• No Supplier Warranty
