Description

Manufacturer Part Number: WF8955AD

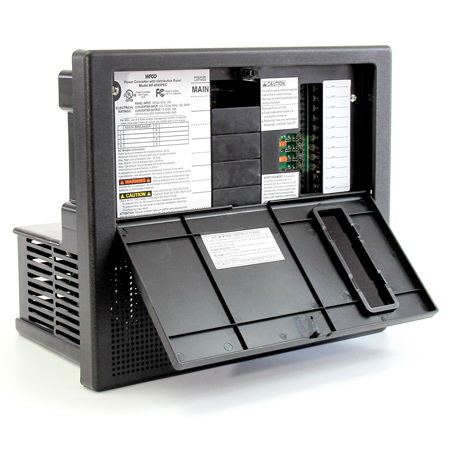

Power Converter; 8900 Series; Converter/ Charger; Converts 105 To 130 Volt Ac To 13.2 To 14.4 Volt Dc; 940 Watt Peak Output; 55 Amp Continuous Output; 1 Main And 5 Branch Ac Circuits; Nine 20 Amp And Two 30 Amp Dc Circuits; Without Volt/ Watt Meter; Protection From Short Circuit/ Reverse Polarity/ Over Current/ Over Temperature/ Over Voltage; 14.17 Inch Width X 11.81 Height X 8.5 Inch Depth Outer Dimension; Black; With Auto Detect Intelligent Battery Detection Charger/ The Battery Guardian™/ Distribution Center/ Led Status Indicator/ Cooling Fan; Lead Acid/ Agm And Lifep04 Lithium Battery Compatible

Attributes

• Converts: 105-130 Volt AC To 13.2-14.4 Volt DC
• Continuous Output Power: 750 Watt
• Peak Output Power: 940 Watt
• Ampere Rating: 55 Amp
• Efficiency: 80 Percent
• Length: 8-1/2 Inch
• Width: 14-1/4 Inch
• Height: 11-3/4 Inch
• Remote On/Off Capable: No
• With Volt/Watt Meter: No
• With Short Circuit: Yes
• With Reverse Battery Protection: Yes
• With Thermal Protection: Yes
• With Built-In Charger: Yes
• With Fuse: No

Product Description

Series has revolutionized RV power centers with its lighter weight, decorative doors and superior features. The model provides 55 ampere and a clean, constant 13.6 VDC nominal output, for reliable operation of electronics and appliances. Automatic three-stage charging extends the life of your battery with output voltage modes of 13.2 VDC range "float" mode, 13.6 VDC range "absorption" mode, and a 14.4 VDC range "bulk" charge mode. The 8900 Series also maintains peace and quiet, as the cooling fan runs only when needed.

Features & Benefits

• Protection From Short Circuit
• Three-Stage Converter Charger
• Easy To Install
• Limited 2 Year Warranty
