Description

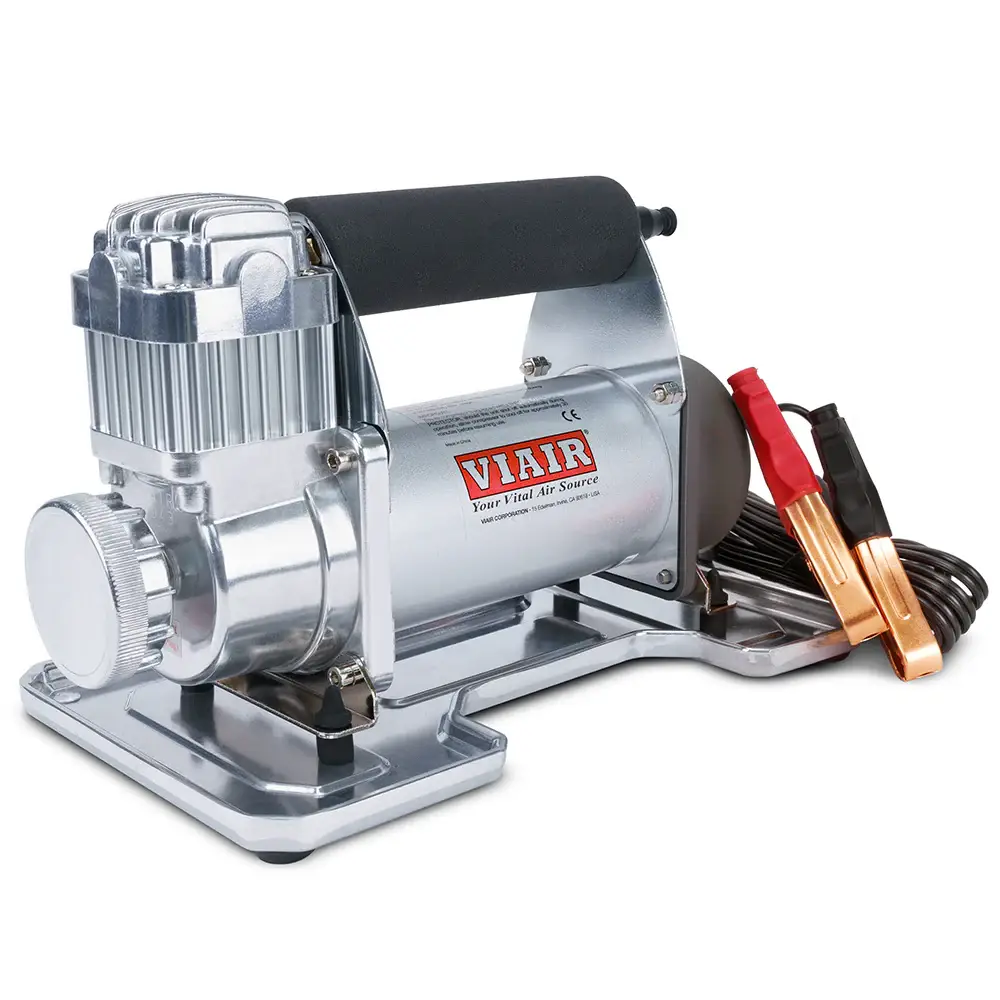

Fill your car, truck, SUV, or off-road vehicles quickly and easily with the VIAIR portable compressor. With its powerful direct-drive motor, maintenance-free operation, a full hour of runtime, and market-leading IP54 dust and water resistance rating, the 400P Portable Compressor performs perfectly in even the toughest conditions.
SPECIFICATIONS
- PN: 40043, 40050
- CFM: 2.30 @ 0 PSI
- 12-Volt / 24-Volt
- Permanent Magnetic Motor
- Duty Cycle: 33% @ 100 PSI
- Max. Working Pressure: 150 PSI
- Max. 12V Amp Draw: 30-Amps
- Max. 24V Amp Draw: 15-Amps
- Ingress Protection Rating: IP54
- Dimensions: 10.9"L x 5.8"W x 7.5"H
- Net Weight: 10.40 lbs.
- Power Cord Length: 8 ft.
- Air Hose Length: 25 ft.
FEATURES:
- Thermal Overload Protector
- 5-in-1 Inflator/Deflator Air Hose
with Inline 100 PSI Gauge - I-beam Sand Tray (PN 40043)
- Diamond-Plate Sand Tray (PN 40050)
- Deluxe Dual Compartment Carry Bag
- 40-amp Inline Fuse Holder
- Dual Battery Clamps
- 3 pc. Inflation Tips Kit
- Presta Valve Adaptor
PLEASE NOTE:
- The air hose supplied with this kit may become brittle from prolonged exposure to UV/sunlight. – Stow when not in use.
- Never allow the hose to come into contact with the head of the compressor during use (melting hazard).
- The use of the included air hose is not recommended in sub zero or freezing conditions.
- The 400P does not work with Presta bicycle valves, unless used with a Presta Valve Adaptor.
- The 400P does not work with the VIAIR Winterization Kit (P/N 90145).
FILL RATES
12-VOLT COMPRESSOR
- 31″ X 10.5″ FILL RATE
- 0 to 30 PSI 3 min. 00 sec. (± 10 sec.)
- 15 to 30 PSI 1 min. 35 sec. (± 05 sec.)
- 33″ X 12.5″ FILL RATE
- 0 to 30 PSI 4 min. 20 sec. (± 10 sec.)
- 15 to 30 PSI 2 min. 05 sec. (± 05 sec.)
- 35″ X 12.5″ ‘FILL RATE
- 0 to 30 PSI 5 min. 20 sec. (± 15 sec.)
- 15 to 30 PSI 2 min. 45 sec. (± 05 sec.)
24-VOLT COMPRESSOR
- 31″ X 10.5″ FILL RATE
- 0 to 30 PSI 2 min. 50 sec. (± 05 sec.)
- 15 to 30 PSI 1 min. 25 sec. (± 05 sec.)
- 33″ X 12.5″ FILL RATE
- 0 to 30 PSI 4 min. 00 sec. (± 10 sec.)
- 15 to 30 PSI 2 min. 00 sec. (± 05 sec.)
- 35″ X 12.5″ FILL RATE
- 0 to 30 PSI 5 min. 05 sec. (± 15 sec.)
- 15 to 30 PSI 2 min. 40 sec. (± 05 sec.)
Performance
12-VOLT COMPRESSOR – Supply Voltage 13.8 Volts
| PSI | CFM | A | BAR | LPM | A |
|---|---|---|---|---|---|
| 0 | 2.30 | 17 | 0 | 65.1 | 17 |
| 10 | 2.13 | 19 | 1.0 | 58.4 | 20 |
| 20 | 1.98 | 21 | 2.0 | 53.0 | 23 |
| 30 | 1.86 | 23 | 3.0 | 48.5 | 24 |
| 40 | 1.75 | 24 | 4.0 | 44.2 | 26 |
| 50 | 1.64 | 25 | 5.0 | 40.2 | 27 |
| 60 | 1.54 | 26 | 6.0 | 37.0 | 28 |
| 70 | 1.44 | 27 | 7.0 | 33.3 | 29 |
| 80 | 1.37 | 27 | 8.0 | 30.1 | 28 |
| 90 | 1.28 | 28 | 9.0 | 27.0 | 28 |
| 100 | 1.19 | 29 | 10.0 | 22.1 | 27 |
| 110 | 1.11 | 29 | |||
| 120 | 1.04 | 28 | |||
| 130 | 0.95 | 28 | |||
| 140 | 0.85 | 27 | |||
| 150 | 0.71 | 27 |
24-VOLT COMPRESSOR – Supply Voltage 28 Volts
| PSI | CFM | A | BAR | LPM | A |
|---|---|---|---|---|---|
| 0 | 2.54 | 10 | 0 | 72.0 | 10 |
| 10 | 2.26 | 11 | 1.0 | 62.2 | 11 |
| 20 | 2.12 | 12 | 2.0 | 55.4 | 12 |
| 30 | 1.94 | 13 | 3.0 | 50.7 | 13 |
| 40 | 1.84 | 13 | 4.0 | 46.3 | 14 |
| 50 | 1.70 | 14 | 5.0 | 43.4 | 14 |
| 60 | 1.62 | 14 | 6.0 | 40.5 | 14 |
| 70 | 1.55 | 14 | 7.0 | 35.7 | 14 |
| 80 | 1.48 | 14 | 8.0 | 32.1 | 14 |
| 90 | 1.41 | 15 | 9.0 | 27.0 | 14 |
| 100 | 1.27 | 14 | 10.0 | 22.1 | 14 |
| 110 | 1.20 | 14 | |||
| 120 | 1.09 | 14 | |||
| 130 | 0.95 | 14 | |||
| 140 | 0.85 | 14 | |||
| 150 | 0.71 | 14 |
